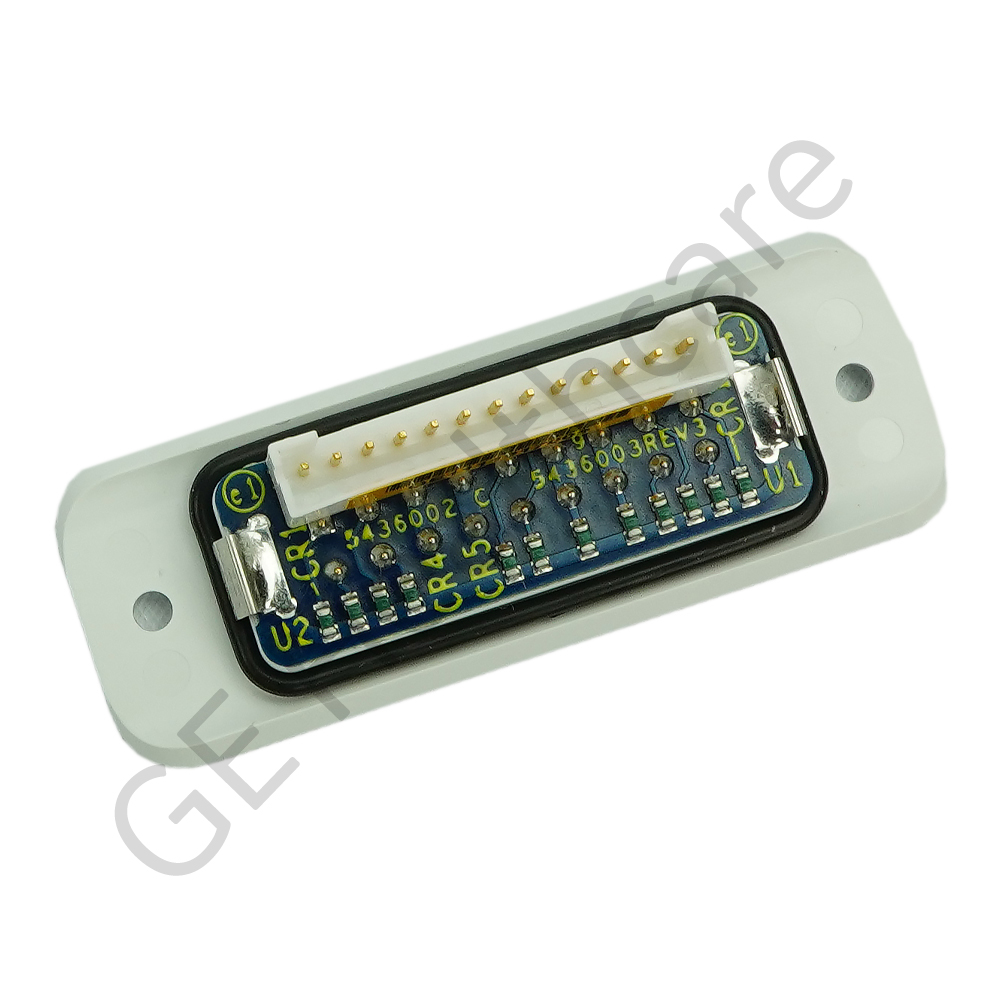

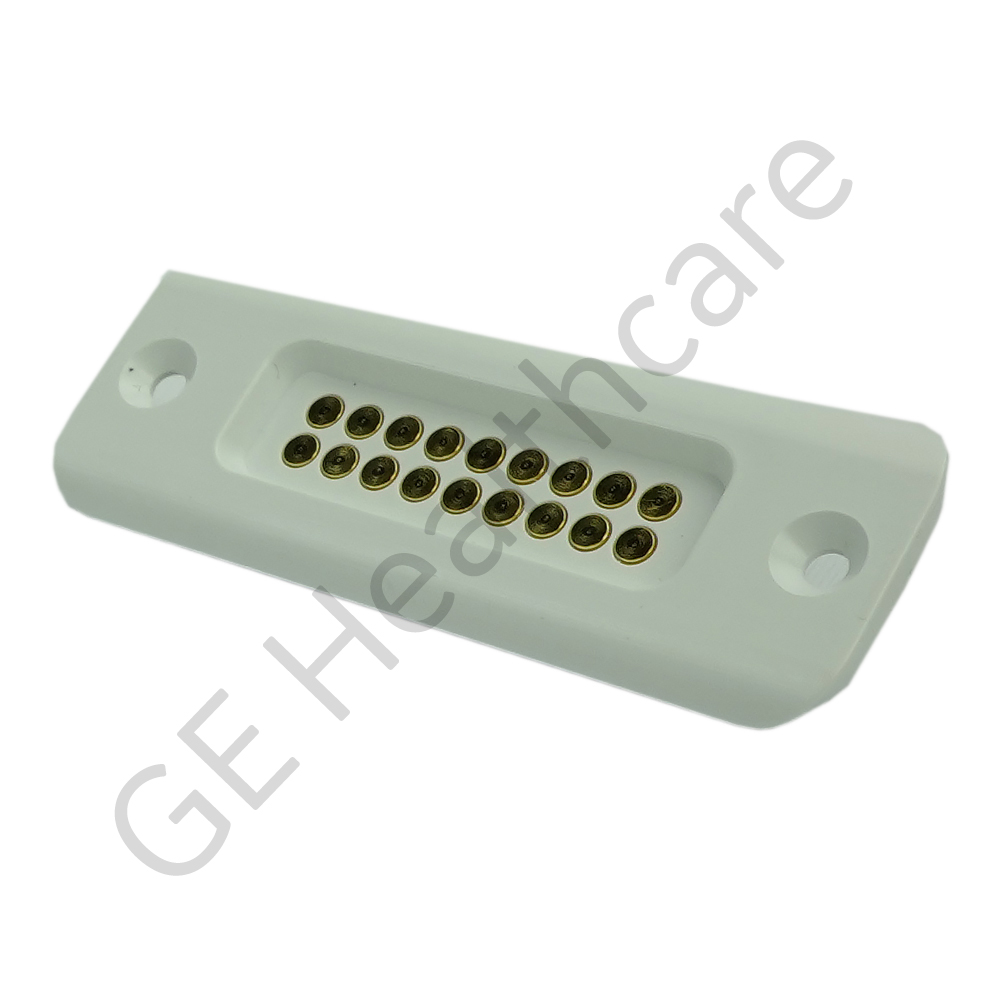

Universal RAD Power Docking Interface Board
| 5436002 | |
| 5436002-H | |
| 全新 | |
| X射线成像设备 | |
| 小蜜蜂移动DR | |
| GE医疗 | |
| GE HealthCare | |
| 无 | 不需归还 |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述
The Universal RAD Power Docking Interface Board is the part of flash pad detector, which is used in the Optima XR 200 AMX and XR 220 AMX imaging systems. The detector docking connector is used to charge the flash pad detector. It is also known as charging connector. The charging connector is comprised of URP detector, ground clip, pin connector, protection ESD suppressor and URP docking interface. The flash pad detector is used to convert X-ray data into digital image data that is transferred to the system for processing and display. The detector is an X-ray imaging device that consists of an array of 2024 x 2024 pixels. Each pixel is attached to a data acquisition circuit that converts incoming X-ray signal to 14-bit digital data. The detector is constructed from a metal case. The front face contains a graphite X-ray imaging window and the back face contains safety warnings.
适配的产品
Optima XR220
Discovery XR656
Discovery XR656G2
Precision 500D
Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
Optima XR646
替代零备件:
我们为您提供了以下替换零备件。这些是兼容的替换零备件。没有超链接仅供参考且不可在线购买。如果您需要了解更多的信息，请联系客服人员。
| 替代零备件 | 备件详情 |
|---|---|
| 5436002-H | FlashPad Docking Interface Bd |
