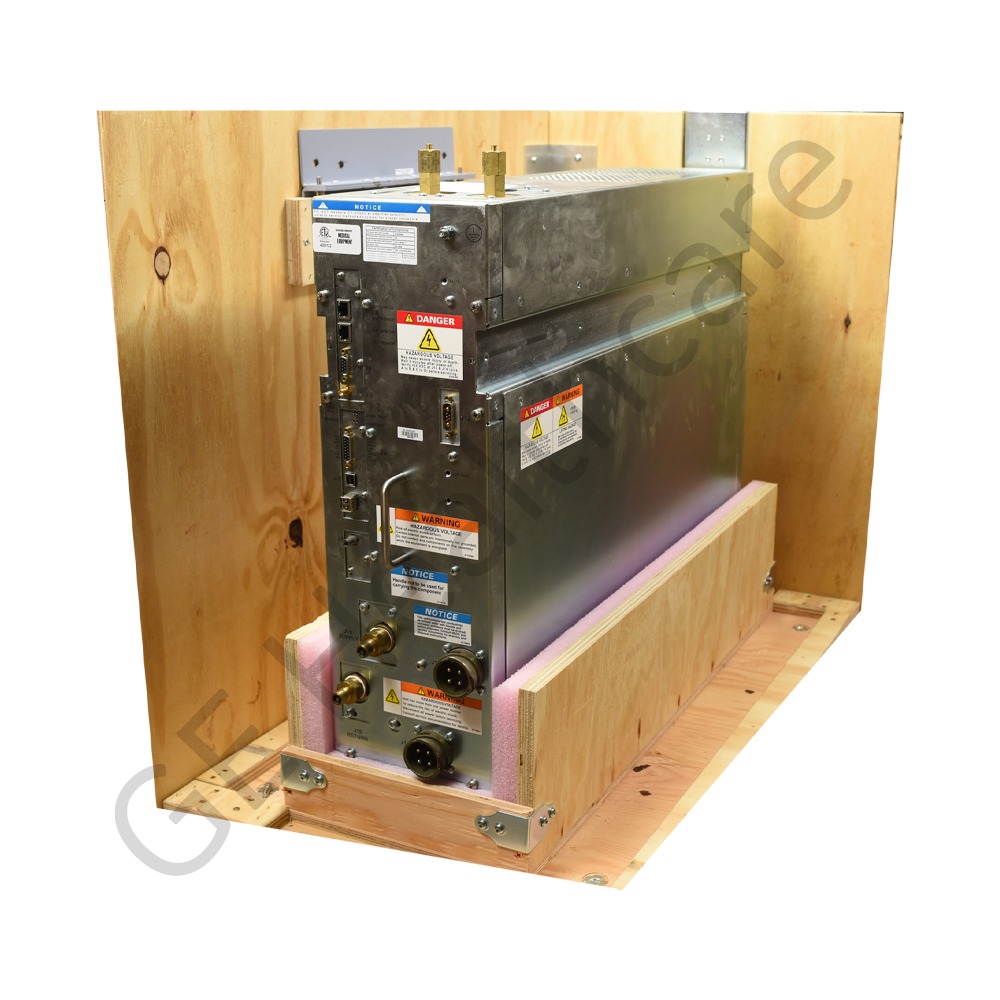

Extreme Gradient Driver Amplifier
| 5184566-2-R | |
| Refurbished | |
| 影像设备通用备件-2 | |
| 其他备件 | |
| GE医疗 | |
| GE HealthCare | 旧件归还 |
|
是 | |
加入愿望清单
登录并添加到购物车
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
备件描述
The Extreme Gradient Driver Amplifier is used in Magnetic Resonance Imaging (MRI) applications. The extreme gradient amplifier (XGA) is an IGBT-based switching amplifier which is a part of the extreme gradient driver (XGD) sub-system of an MR system. This XGA provides the maximum of 660A and 1650V power supply to overcome the inductance and resistance of the XRMB gradient coil. It is powered by the extreme power supply (XPS). The XGA must be tested in an XGD cabinet including the PDU, power supplies and control electronics. The Cronus chassis is used to communicate waveform commands between the system and XGA. A current command of 660A is equal to 219 DAC counts in the waveforms. The voltage compliance, high precise control and outstanding noise performance of XGA will help to meet the present-day challenges in most advanced MRI applications.
